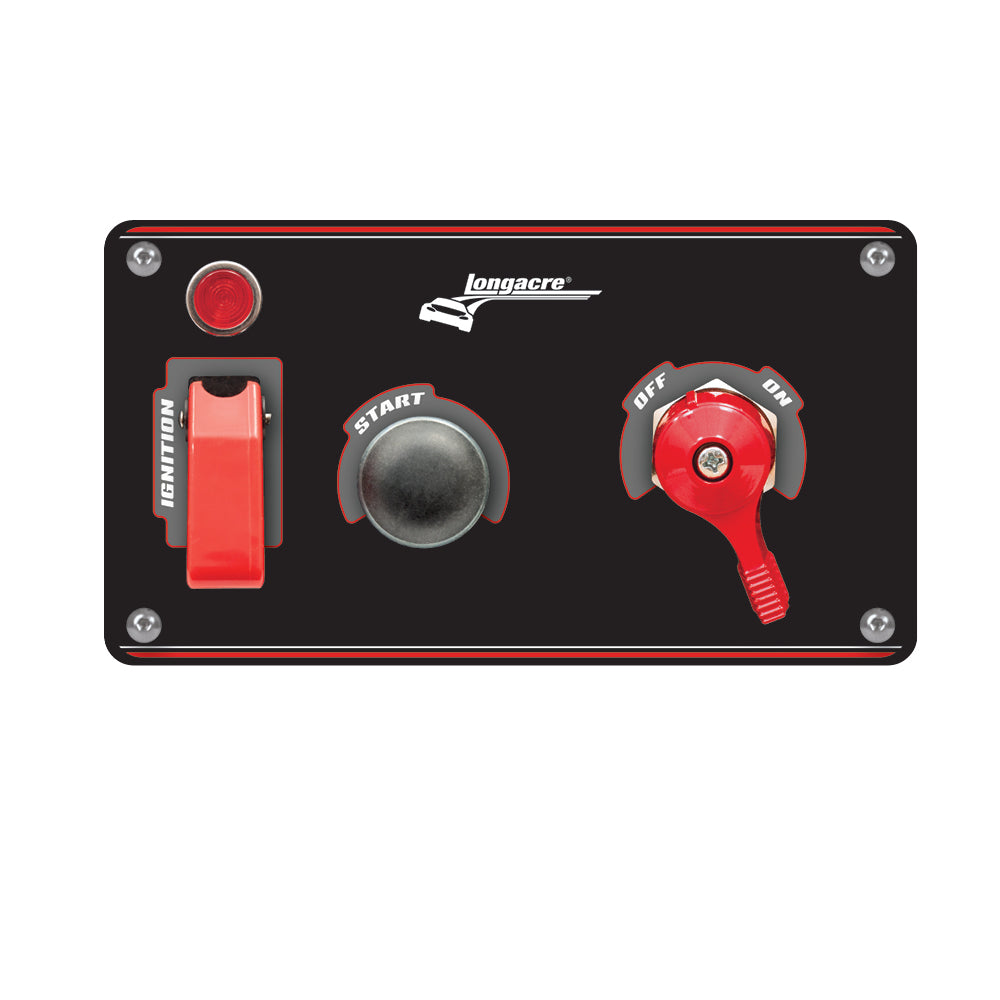

Huge offer Flip-Up Start / Ignition Panel W/ Pilot Light & Battery Disconnect

The Longacre Advantage

• Flip-up AND Weatherproof Covers
  • Panel includes both aircraft style flip-up and silicone rubber weatherproof ignition switch covers - easily changed to match your preference.
• Easy to Install
  • Panel comes pre-wired for an easy installation - even easier with a Heavy Duty Wiring Harness 44930.
  • Panel can be mounted directly to your dash or to your roll bar with Mounting Brackets 22783 or 22787.
• Matching Graphics
  • Clean modern graphics match our 2015 gauge panels

• High capacity (40 amp at 12 volts) ignition switch with aircraft style cover and pilot light - Easy to turn off in an emergency from any angle, even with gloves. Will not turn off from vibration
• Silicone rubber weatherproof ignition switch cover included - to keep out dirt and moisture
• Starter button with rubber switch boot to seal out moisture
• Manual battery disconnect switch with a bright red handle (175 amp continuous rating, 6-36 volt, 1000 peak)
• Easier to find in an emergency
• Prevents battery drain
• Great looking Aluminum Panel - black anodized with clean, modern graphics
• Assembled and wired
• Plugs into Longacre wiring harness (not included)
• Mounts to 1-3/4" or 1-1/2" roll bar with Longacre Bolt-On Mounting Brackets P/Ns 22783 or 22787

• Pre-wired with high insulation 'Fat' wires and soldered terminals with heat shrink seals



  Specifications
  Ignition Switch
  	Style:	Toggle
  	Cover Installed:	Aircraft style flip
  	Alternate Cover Included:	Weatherproof silicone rubber
  	Pilot Light Included:	Yes
  	Rating:	40 amps @ 12 volts or 20 amps @ 110 volts
  Starter Switch
  	Style:	Push button
  	Cover:	Weatherproof silicone rubber
  	Rating:	15 amps @ 12 volts resistive
  Battery Disconnect Switch:
  	Switch Activation:	Manual
  	Switch Actuation:	Rotary
  	Voltage Rating:	6-36 volts
  	Continuous Amperage Rating:	175 amps
  	Peak Amperage Rating:	1000 amps
  	Alternator Disconnect Included:	No
  	Weatherproof:	No
  	Stud Size:	3/8"
  Panel:
  	Material:	Lightweight aluminum
  	Finish:	Black Anodized
  	Panel Dimensions:	6 5/8" x 3 5/8"
  	Wiring Included:	Yes
  	Fits Longacre Panel Bracket:	No
