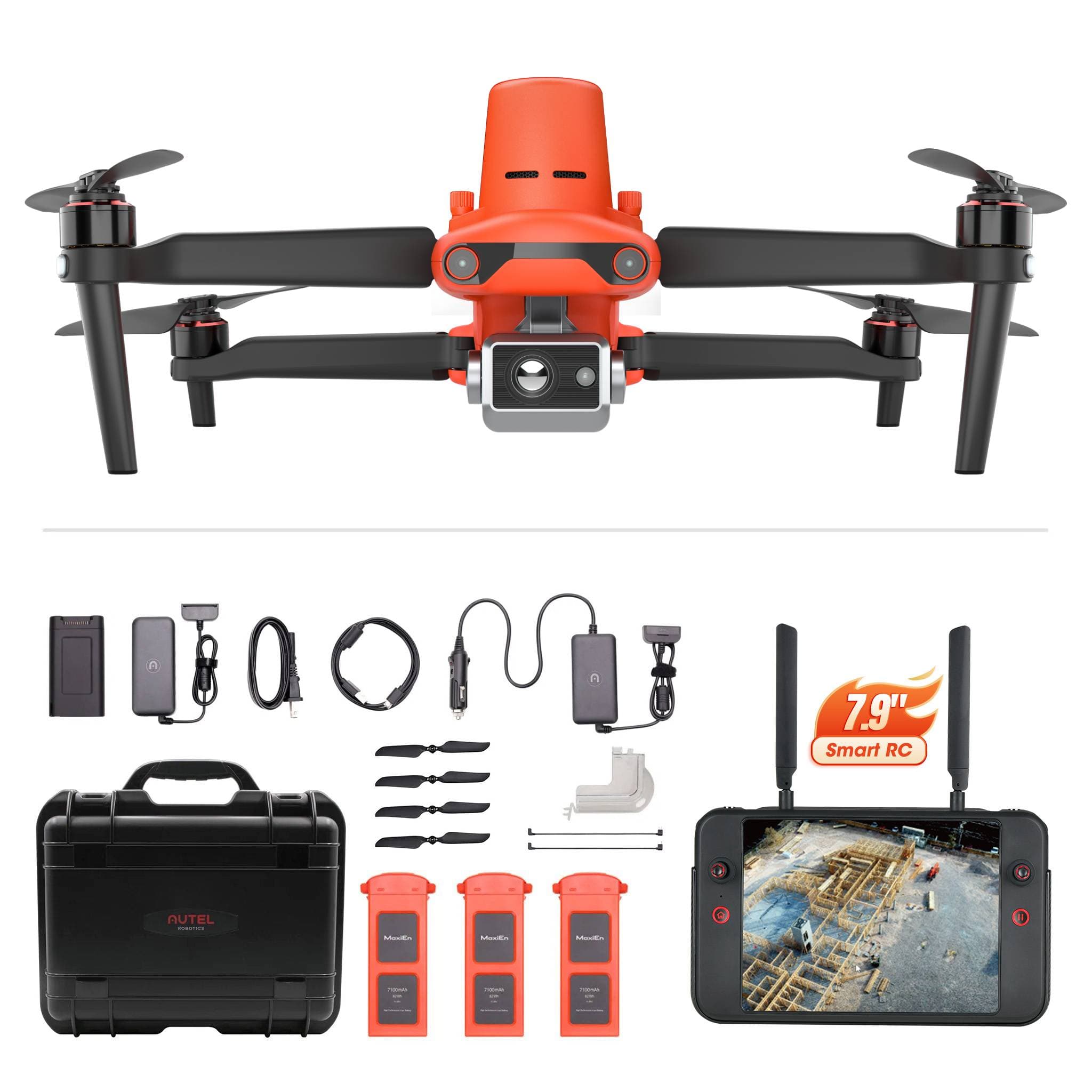

Members-only Autel Robotics EVO II Dual 640T RTK Thermal Drone Rugged Bundle [V2] With Autel 7.9" Smart Controller

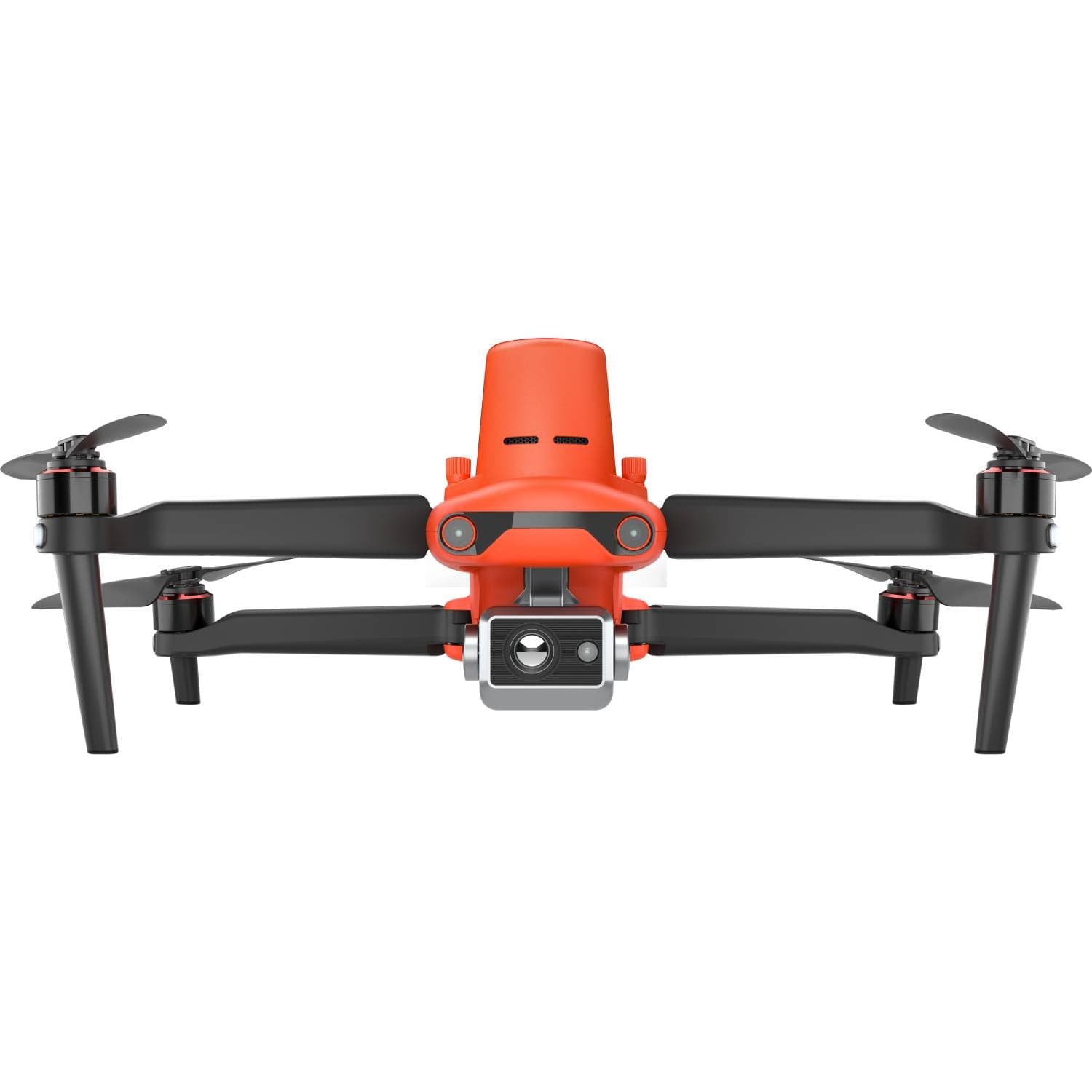

Autel Robotics EVO II DUAL 640T V2 RTK Drones

The Autel Robotics EVO Dual 640t RTK is an RTK drone that combines an infrared imaging camera with an 8K camera. The Autel Robotics EVO Dual 640t RTK features a 1/2-inch, 48-megapixel CMOS sensor with a thermal imager with a resolution of up to 640x512. RTK drone EVO Dual 640t RTK is commonly used in surveying and mapping, 3D modeling, search and rescue, forest fire protection and inspection.

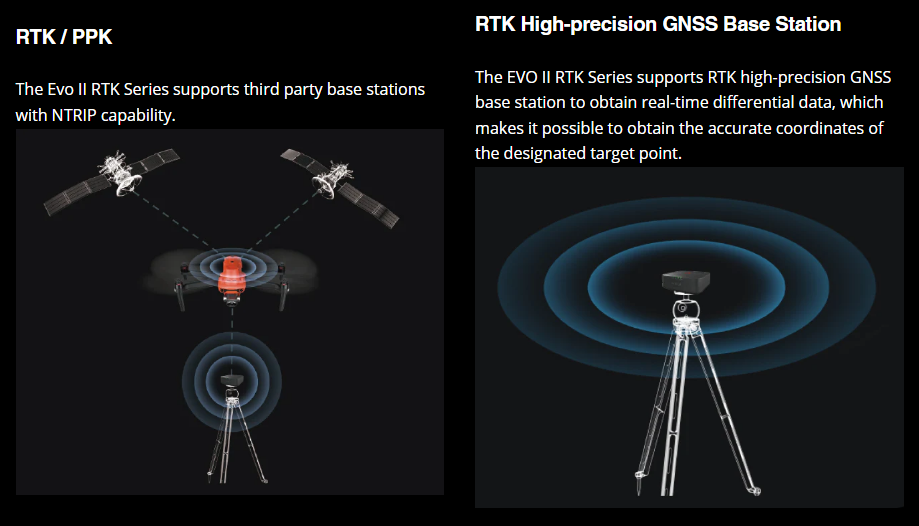

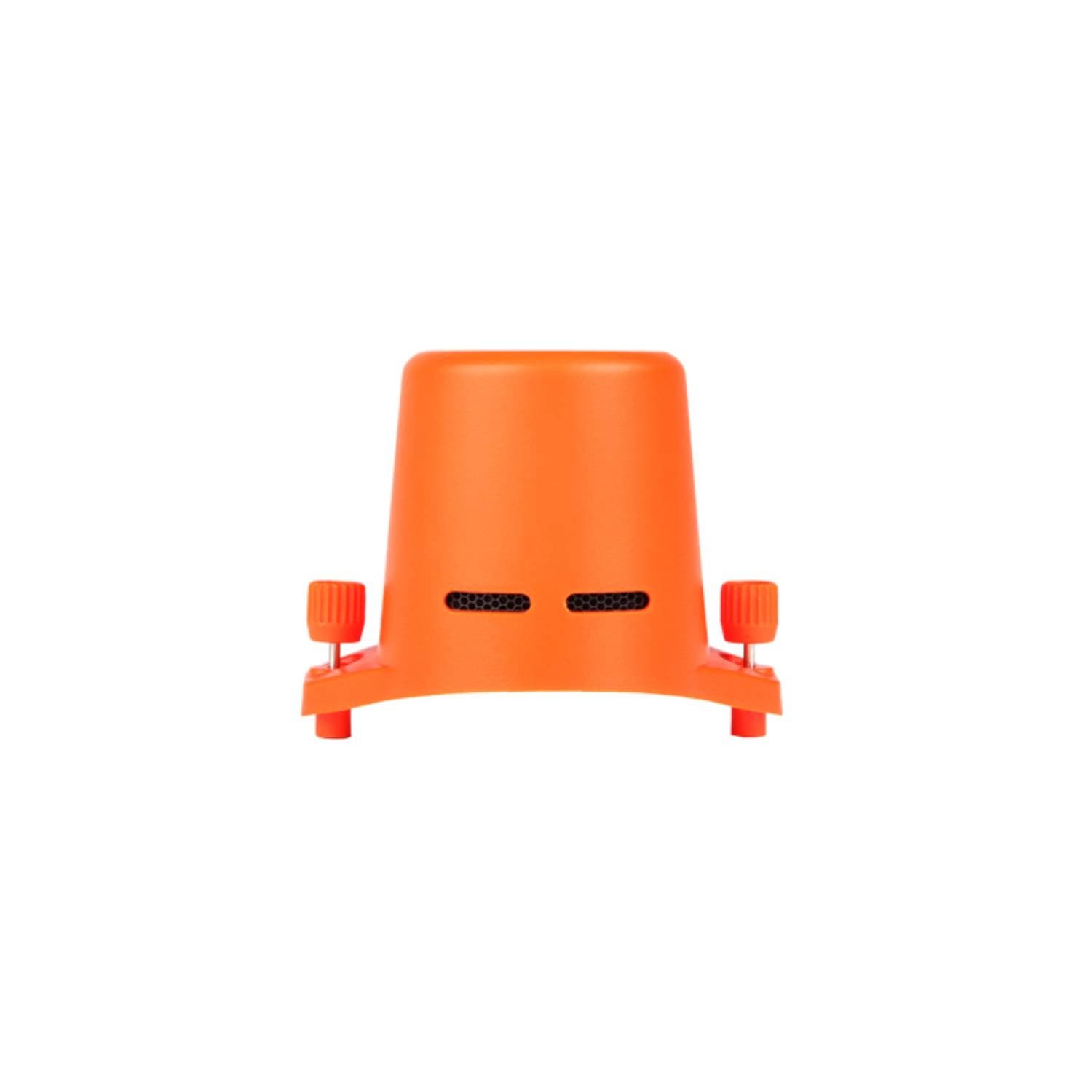

Centimeter-Level Positioning System

The Autel Robotics EVO Dual 640t RTK integrates a new RTK module on top that provides real-time centimeter-level positioning data and supports Post-Processing Kinematics (PPK). The RTK drones can record raw satellite observations, camera exposure parameters and various other data. The positioning system supports A-RTK base stations and RTK networks, helping to provide stable and accurate data collection in complex operating environments.

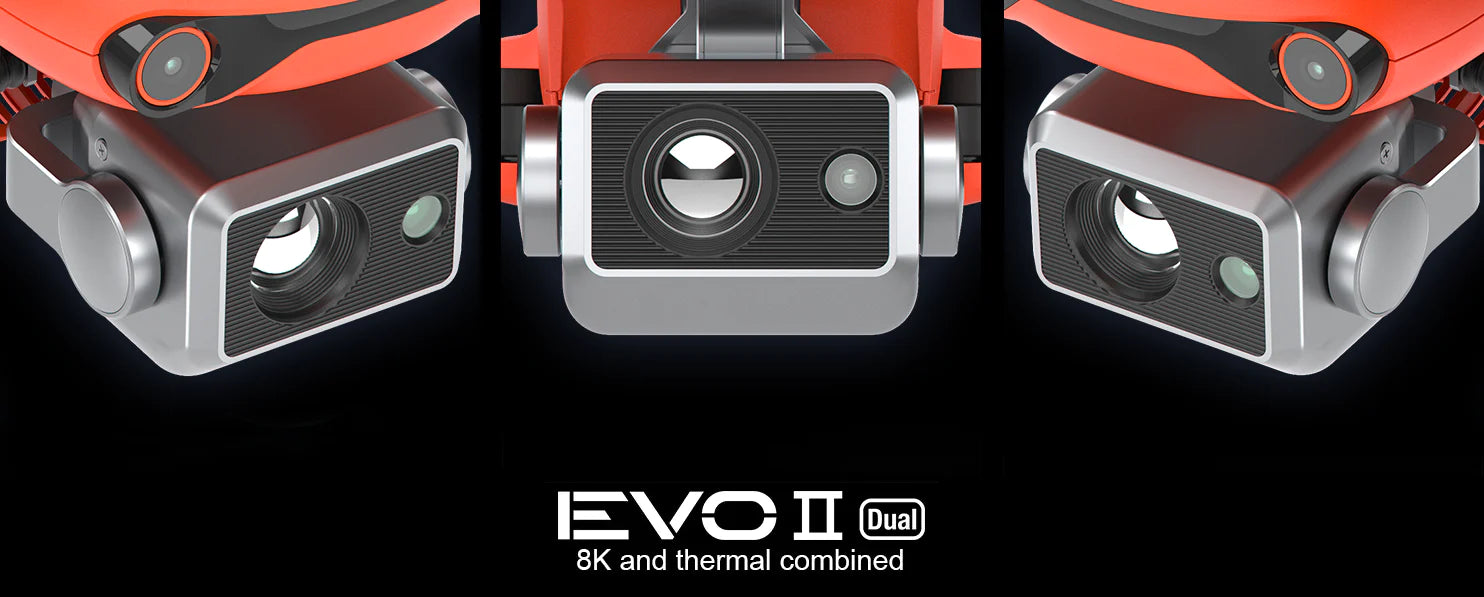

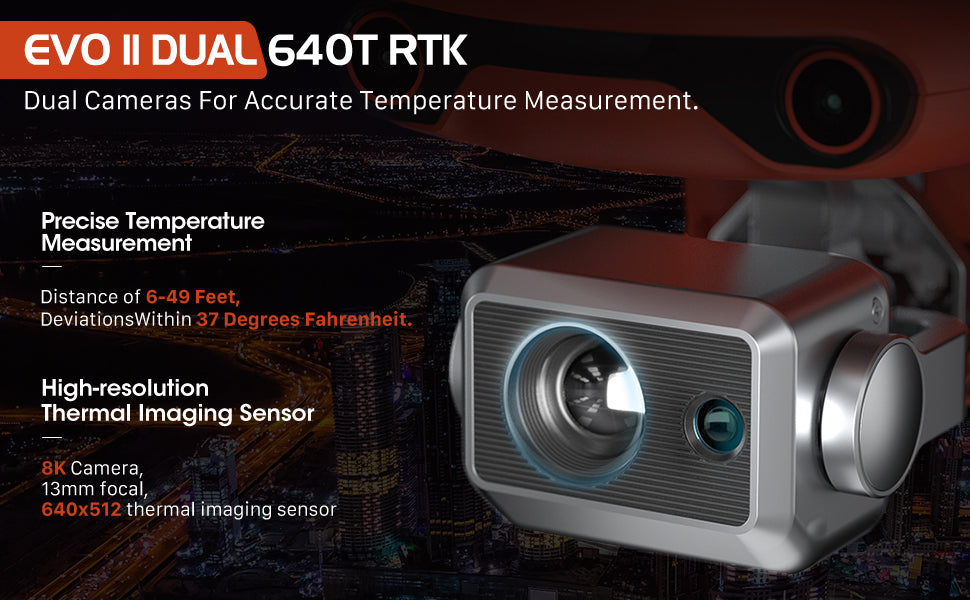

Autel Dual 640T Sensor Camera - 8K and IR Camera

Dual-sensor camera: Includes 8K camera and infrared imaging camera. It can operate in visible light, infrared and dual image modes. Additionally, the camera captures infrared images at 640 x 512 (640) or 320 x 256 (320) resolution and records 720p video in dual image mode at 30 fps. Standard 13mm lens, 16x digital zoom, can identify objects up to 100 meters away.

8K Video with Unparalleled Clarity

Reach new visual heights with the EVO II Dual 640T. The EVO II Dual 640T records up to 7680x4320 resolution. With a 1/2" CMOS sensor camera capable of capturing 8K video at up to 25fps, up to 48MP still images to help capture evidence with precision, you can record stunning detail previously unattainable on aerial platforms.

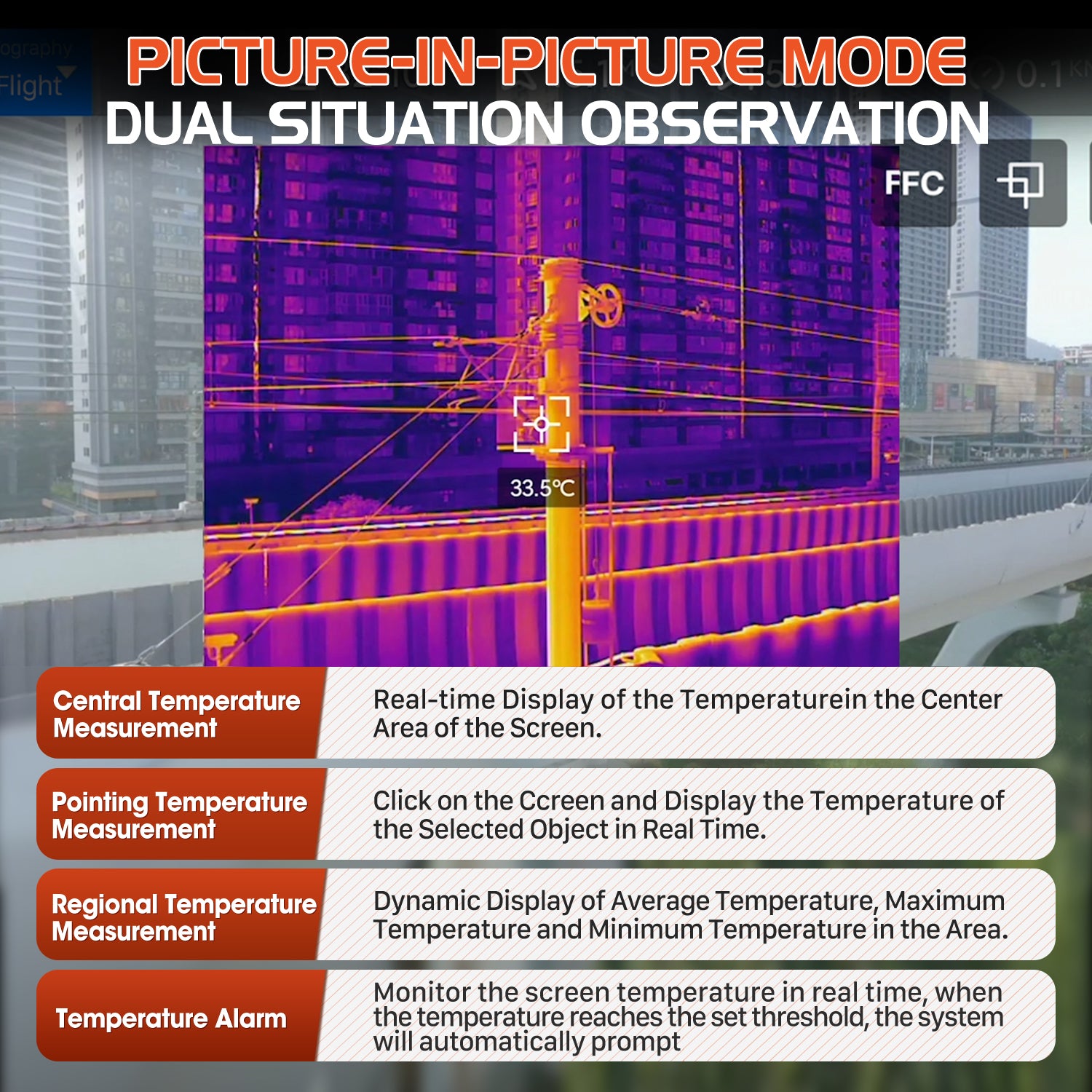

Picture-in-Picture Mode (Enhanced Situational Awareness)

Visual and thermal images combine to help users quickly interpret data and help make critical decisions.

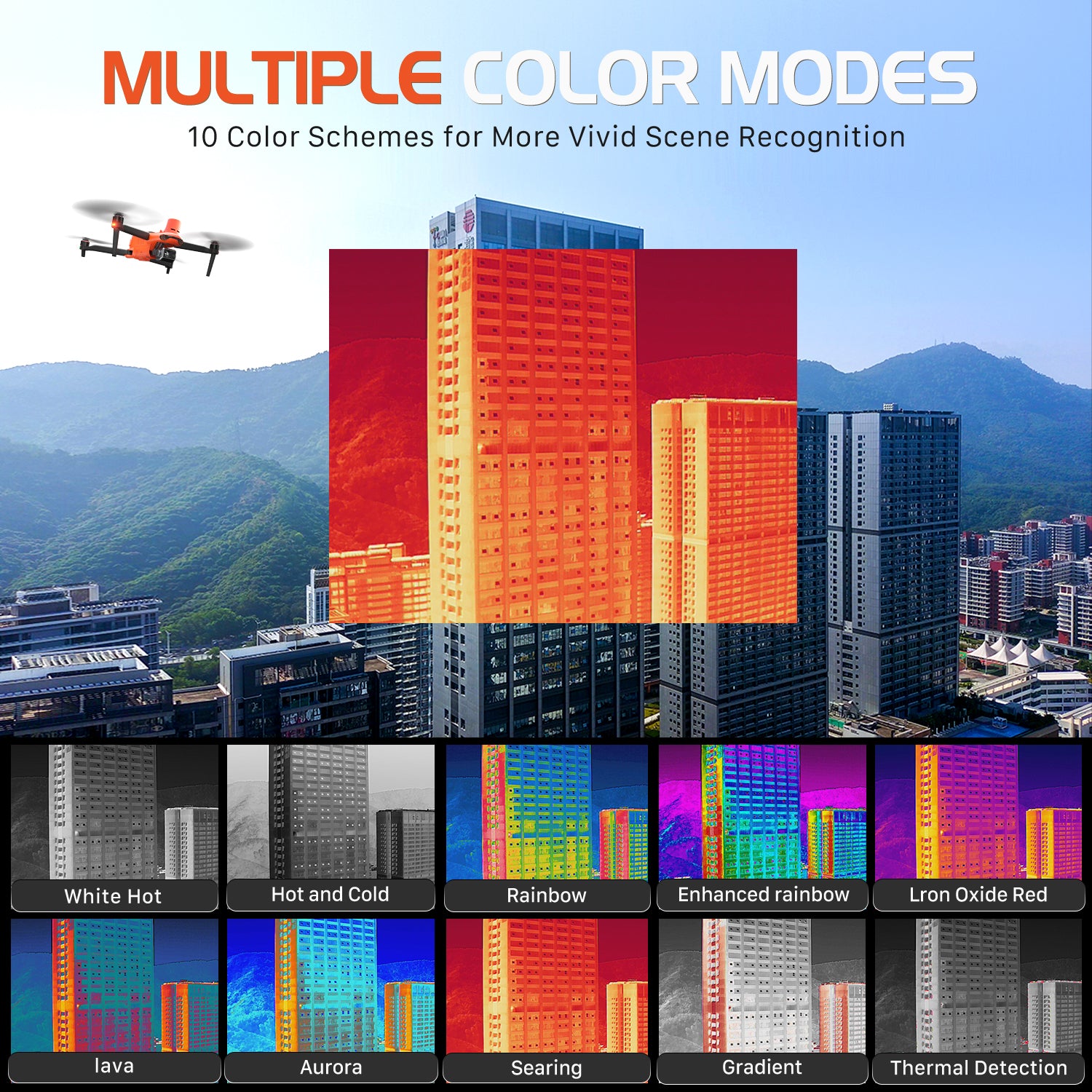

Multiple Color Modes

10 Color Schemes for More Vivid Scene Recognition

Mission Execution With Advanced Intelligence

The EVO II RTK series uses advanced flight controls and the latest artificial intelligence technology to provide A full range of intelligent functions and solutions actively improve the task workflow, respond to various complex and repetitive task requirements, and minimize operating costs.

Powerful Infrared Thermal Analysis Tool(IRPC)

This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

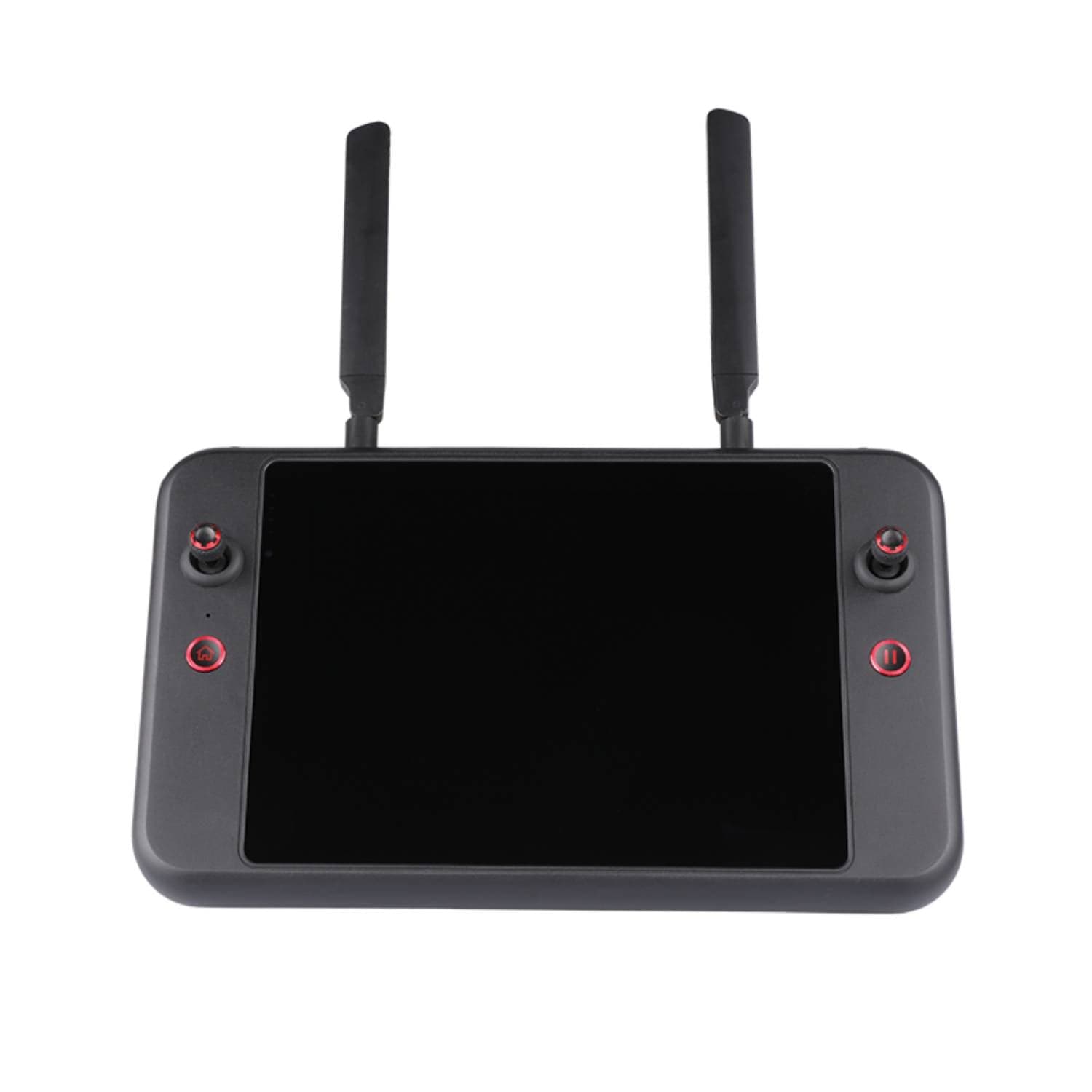

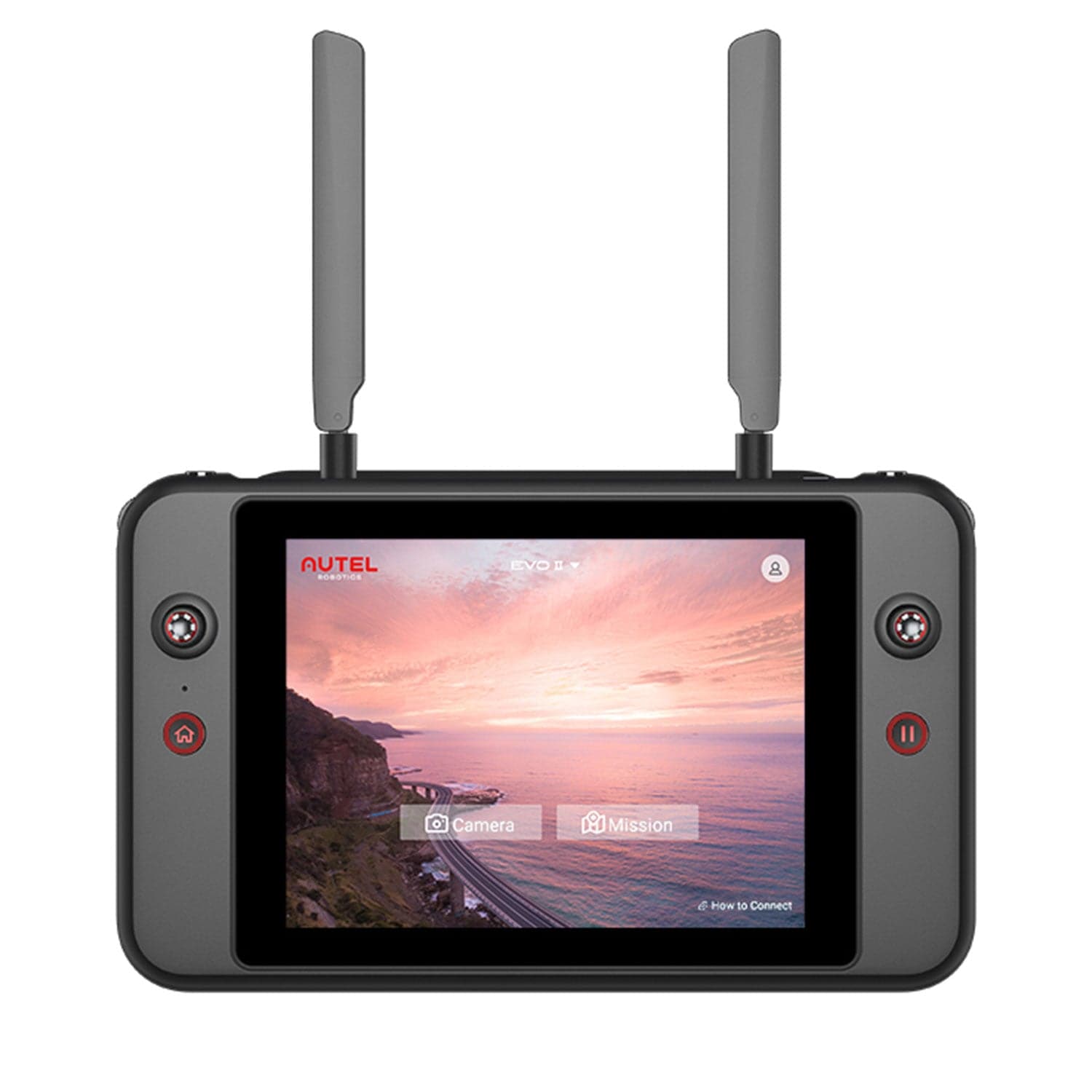

Autel Smart Controller

EVO II Dual 640T Rugged Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating. This 7.9" Smart Controller from Autel Robotics features a 2000-nit display, 4.5 hours of runtime, 128GB of internal storage and a customized Android operating system that allows for 3rd party apps to be downloaded and installed.

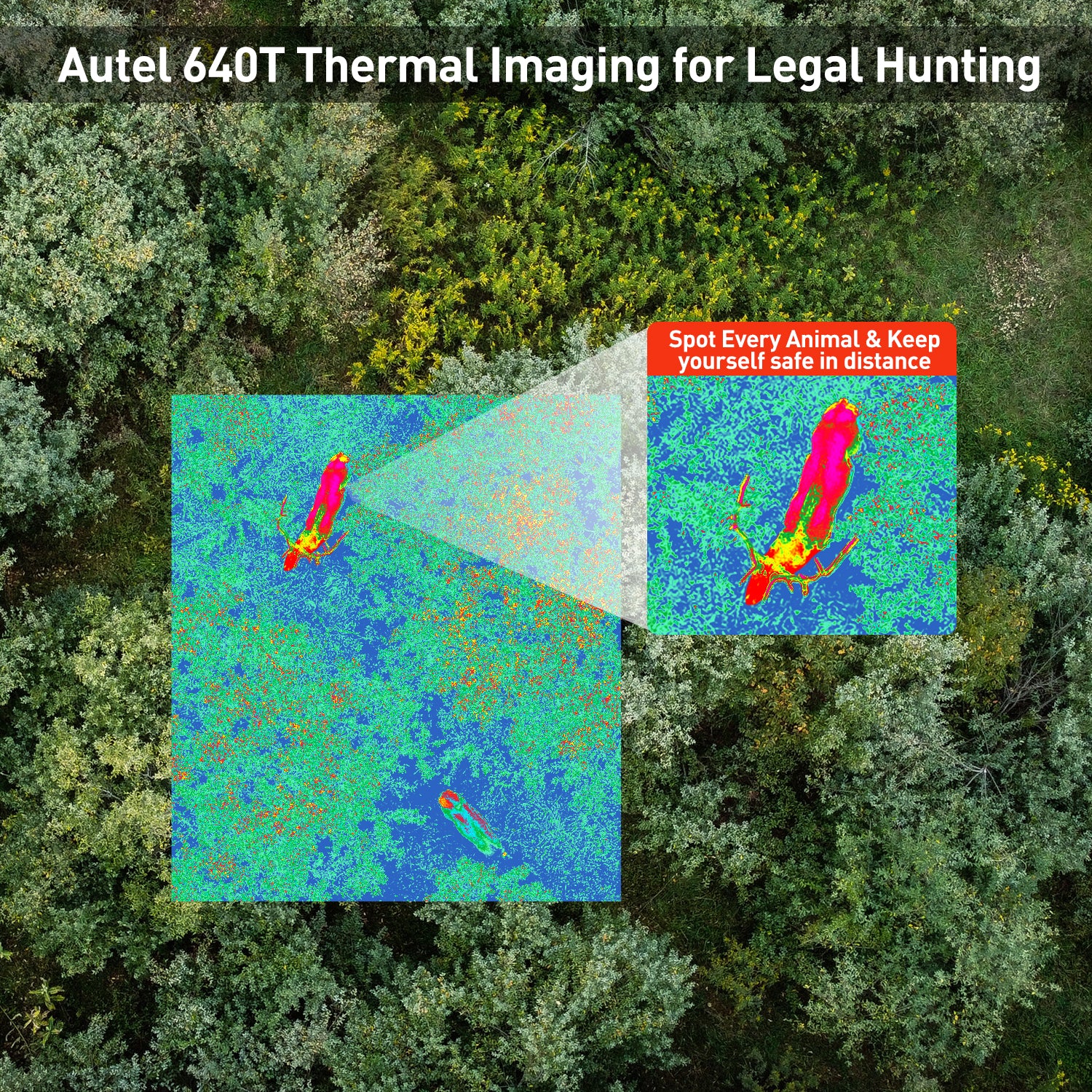

The New Level of Thermal Drone

A sharp, high-contrast thermal image ensures improved identification of a wild animal, individual body parts and even the smallest objects such as branches, leaves, grass and ground surface.

All three camera modules support a variety of shooting modes, including: Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio)

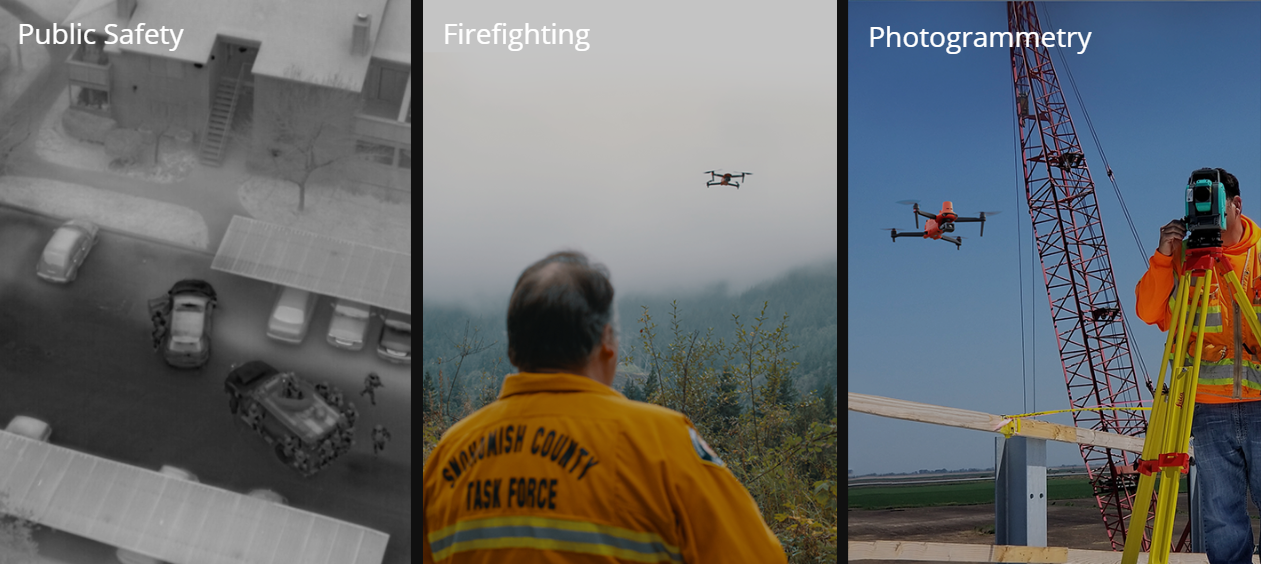

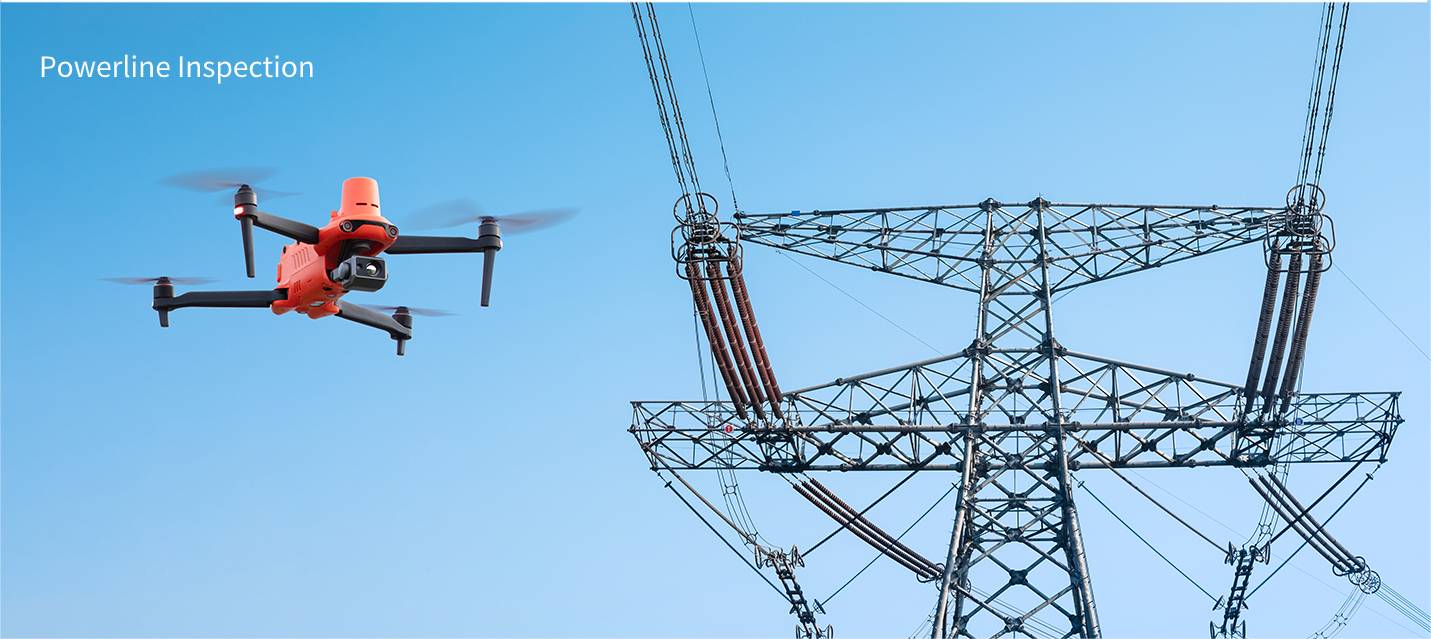

Application Field

RTK drones use real-time dynamic technology to create highly accurate and precisely measurable local images or maps of ground areas, allowing real-time correction of position data when drones measure and capture live images, and are widely used in Powerline Inspection, public safety, firefighting, photogrammetry and other scenes to meet the needs of professionals.

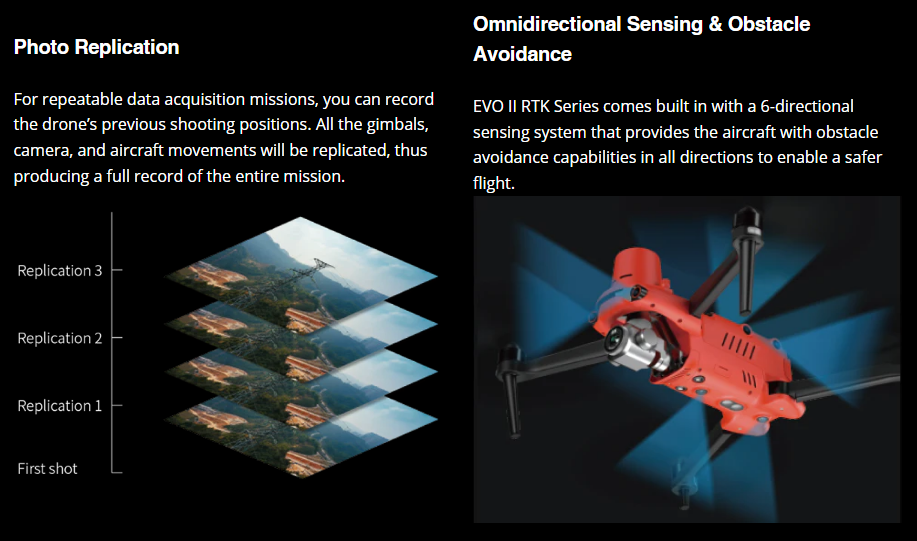

12 Sensors for Omnidirectional Obstacle Avoidance

The EVO 2 Dual 640t's front, rear, left, right, up, and down binocular vision sensing system uses AI-enhanced omnidirectional obstacle avoidance to detect potential dangers up to 30m away, allowing EVO II to accurately control the drone's speed to avoid collisions. The EVO II can navigate itself in all directions, giving you the flexibility to control the drone while giving you the option to turn on aerial photography with the click of a button.

Dynamic Track 2.0

The EVO II Dual 640T can simultaneously model the position and velocity of targets, accurately predict their trajectories, and track them continuously while recognizing up to 64 objects.

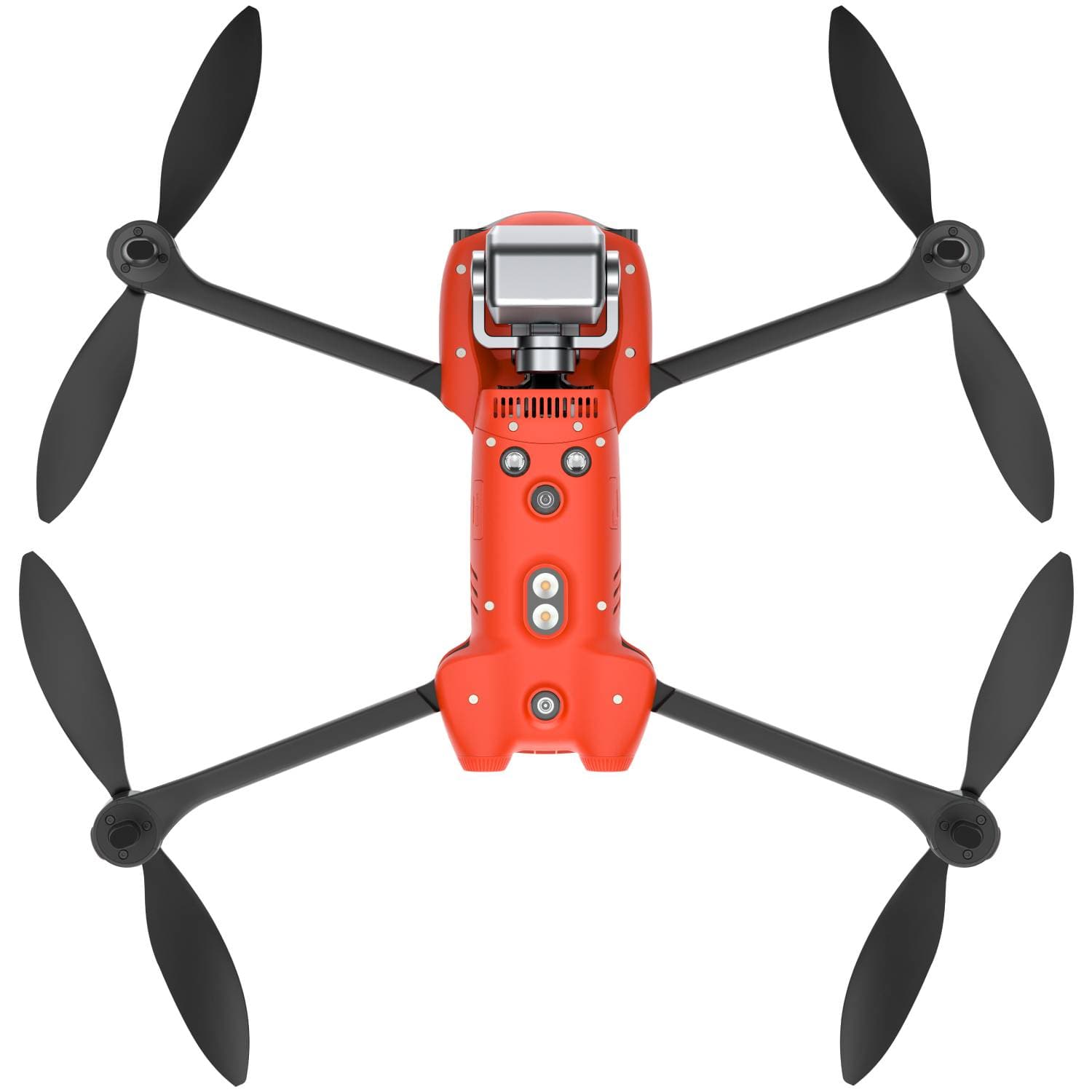

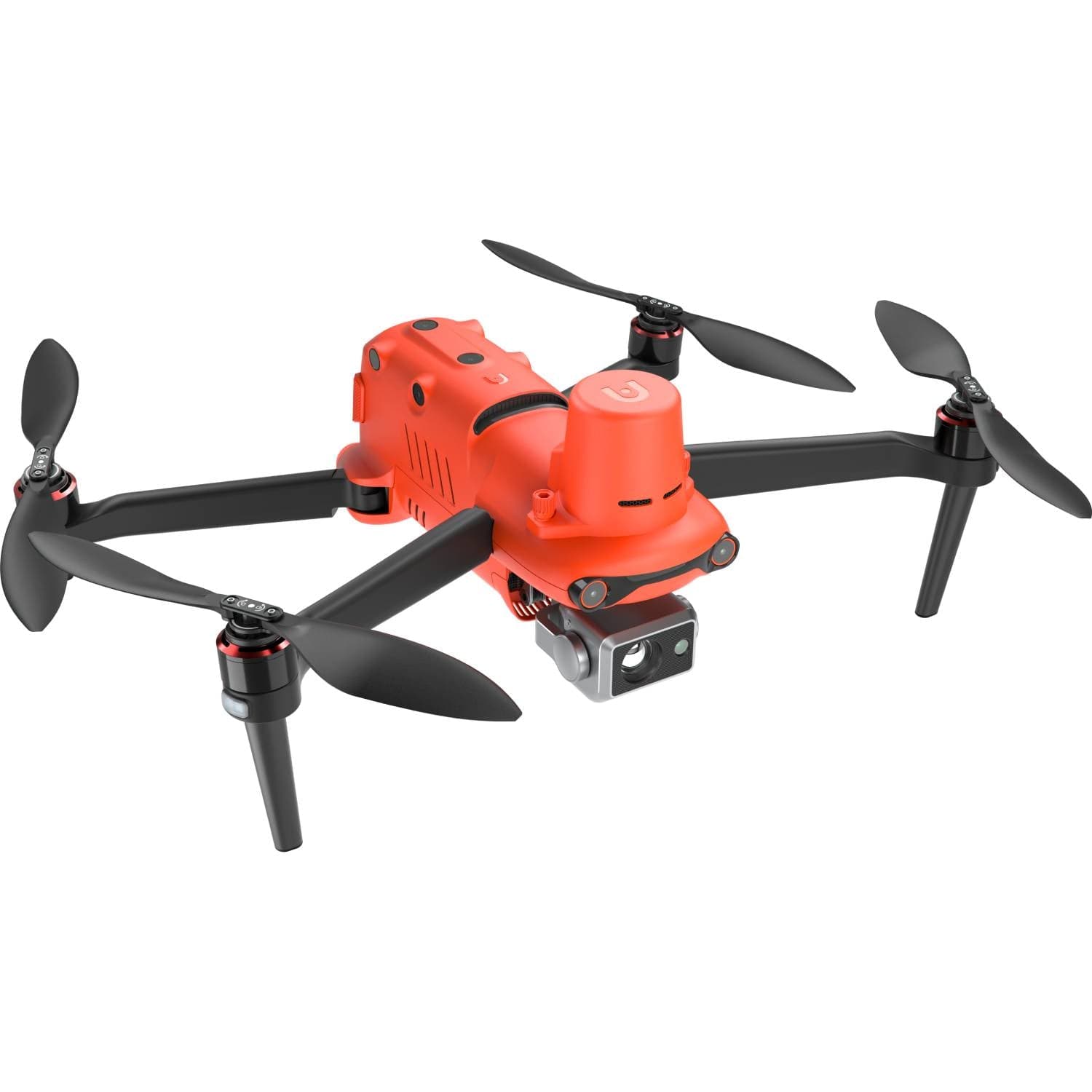

Light, Efficient And Reliable

EVO II Dual 640t RTK Drone v2 has a foldable design, compact and portable, and takes off quickly. Advanced commercial drone, powerful flight performance can reach a maximum transmission distance of 9 kilometers, a flight time of 36 minutes, a maximum speed of 20 m/s, and can ensure stable flight even in harsh conditions, providing professionals with the perfect air deployment solution.

[spec]

Aircraft

Weight (with propeller and battery)	1250g±0.5g（EVO II Dual 640T RTK）
Wheelbase	397 mm
Maximum Service Ceiling Altitude	6000 m
Max ascent speed	5 m/s（automatic flight） 8 m/s（manual control）
Max descent speed	4 m/s
Max horizontal flight speed	72 km/h（Ludicrous）
Max tilt angle	33°（Ludicrous）
Max angular velocity	120°/s
Max flight time	36 min
Operating temperature range	-10℃ ~ 40℃
Maximum resistance to wind	Level 8
Operating frequency	non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz
Transmission power	2.4GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (non-Japan) FCC/ISED/SRRC/MIC：≤27dBm CE/ RCM：≤14dBm
Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally)
Image position compensation	The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

GNSS

Single frequency high sensitivity GNSS	GPS+BeiDou+Galileo（Asia） GPS+GLONASS+Galileo（Other areas）
Multi-frequency multi-system high-precision RTK GNSS	Frequency points used： GPS：L1/L2； GLONASS：L1/L2； BeiDou：B1/B2； Galileo：E1/E5 First positioning time:<50 s Positioning accuracy: Vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS) 1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

Gimbal

Gimbal	Three-axis stabilization
Mechanical range	Tilt：-135° to +45° Pan：-100° to +100°
Controllable rotation range	Tilt：-90° to +30° Pan：-90° to +90°
Max control speed (Tilt)	300°/s
Angular Vibration Range	±0.005°

Autel Robotics Smart Controller

Image Transmission	Max Signal Transmission Distance, (No interference, No obstacles)：FCC：13km;CE：7km Transmitter Power (EIRP) 902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE：≤20dBm 5.725-5.850 GHz CE：≤14dBm
Digital Transmission	Working Frequency：5.725 - 5.755 GHz Transmitter Power (EIRP)：FCC:≤20dBm  CE：≤14dBm
Wi-Fi	Protocol: Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac, Wi-Fi with 2×2 MIMO Working Frequency: 2.400- 2.4835GHz; 5.150-5.250GHz;  5.725-5.850 GHz
Battery	Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-ion Battery Energy: 67 Wh Charging time: 120 min
Operating Hours	~3h(Max Brightness) ~4.5h (50% Brightness)
Internal Storage	128GB
Video Output port	HDMI Port
USB-A Voltage/current	5V/2A
Operating Temperature	-4° to 104° F (-20℃ to 40℃)
Storage Temperature Range	< 1 month: -4° to 113° F (-20° to 45° C) 1-3 months: 32° to 86° F (0° to 30° C) 3-12 months: 59° to 77° F (15° to 25° C)
Charging Temperature	41° to 113° F (5℃ to 45℃)
*Supported Aircrafts	EVO II Series, EVOII RTK Series, EVO II Enterprise
Satellite Positioning Module	GPS +GLONASS +Galileo
Dimensions	303×190×87mm (with antenna folded) 303×273×87mm (with antenna unfolded)
Weight	1150g (without protection case) 1250g (with protection case)

Sensing system

Sensing system type	Omnidirectional sensing system
Forward	Accurate measurement range: 0.5-20 m  Detection range: 0.5-40 m  Effective sensing speed:<15m/s  Viewing angle: Horizontal: 60°, Vertical: 80°
Backward	Accurate measuring range: 0.5-16 m  Detection range: 0.5-32 m  Effective sensing speed:<12m/s  Viewing angle: Horizontal: 60°, Vertical: 80°
Upward	Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed:<6m/s Viewing angle: horizontal: 65°, vertical: 50°
Downward	Accurate measurement range: 0.5-11 m Detection range: 0.5-22 m Effective sensing speed:<6m/s Viewing angle: horizontal: 100°, vertical: 80°
Left and right	Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed:<10m/s Viewing angle: horizontal: 65°, vertical: 50°
Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

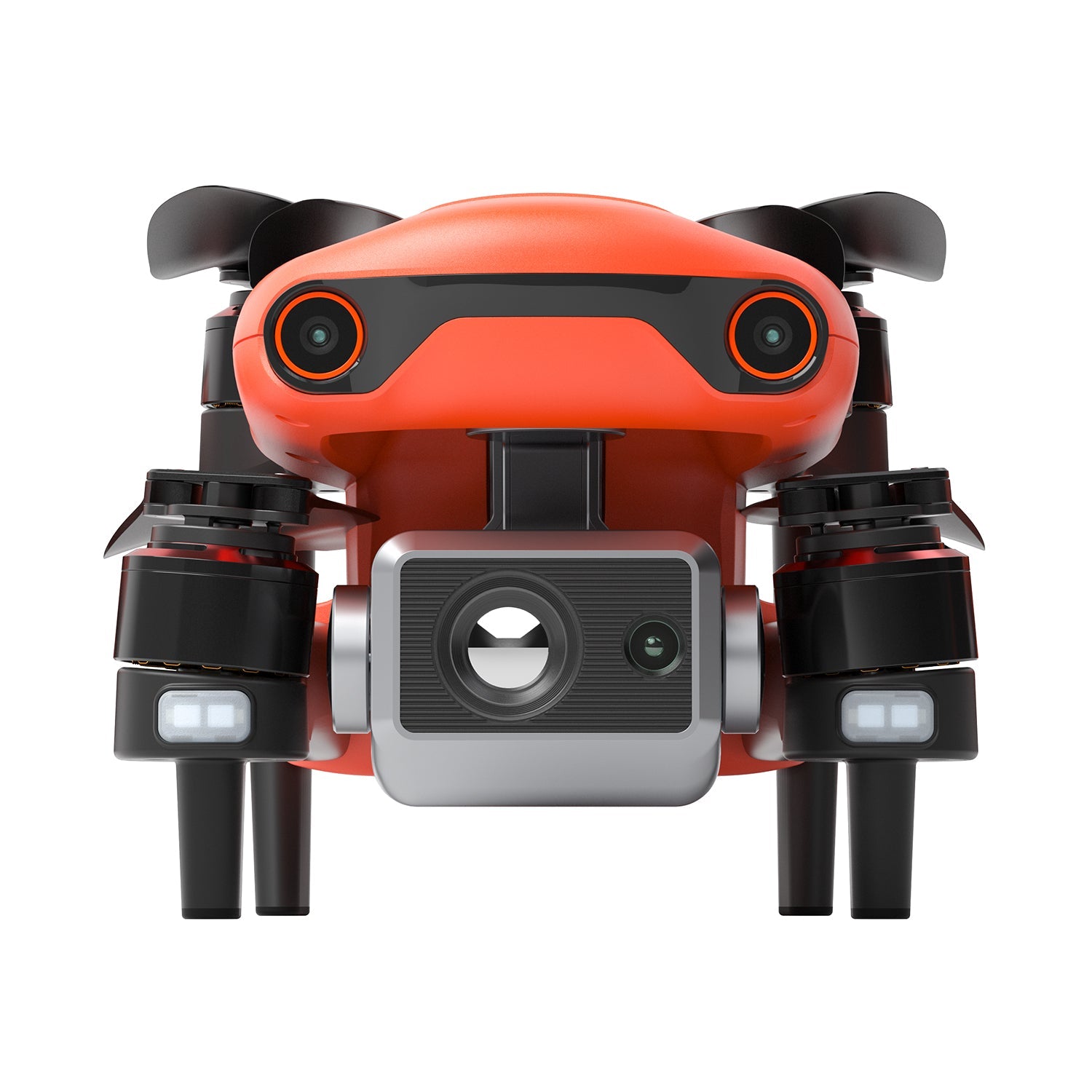

EVO II Dual 640T RTK Thermal Camera

Sensor	Uncooled VOx Microbolometer
Lens	FOV H33°V26° Focal length 13mm
Zoom	1 - 16x
Sensor resolution	640x512
Pixel size	12μm
Wavelength range	8 - 14μm
Temperature range	High gain mode: -20° to +150° Low gain mode: 0° to +550°
Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
Video resolution	640x512@30fps
Bitrate	6Mbps
Video format	MOV / MP4 (Support H.264/H.265)
Camera resolution	Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720
Photo mode	Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s, 5s is the default
Photo format	TIFF+JPG (with irg file)

EVO II Dual 640T RTK visible light camera

Sensor	1/2 inch CMOS; 48M effective pixels
Lens	FOV: 79° 35 mm format equivalent focal length: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus)
Zoom	1-16x (up to 4x lossless zoom)
ISO range	Video：100-6400 Photos：100-3200
Maximum photo size	8000x6000（4:3） 7680x4320（16:9） 4000*3000 (4:3) 3840*2160 (16:9)
Photo mode	Single shot Burst shooting: 3/5 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60 DNG:5s/7s/10s/20s/30s/60s HyperLight: support (under 4K JPEG format) Long exposure:Max. 8s HDR imaging: support (under 4K JPEG format)
Image Format	JPG (default); DNG
Video format	MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265)
Video resolution	8K 7680*4320 p25/p24 6K 5760*3240p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max bitrate	120Mbps

Intelligent Flight Battery

Capacity	7100 mAh
Voltage	11.55 V
Battery type	LiPo 3S
Energy	82 Wh
Weight	365 g
Charging temperature range	5℃ to 45℃
Storage temperature and humidity	-10~30℃，65±20%RH
Recommended storage temperature	22~28℃
Max charging power	93W
Charging time	90 minutes

Intelligent Flight Battery Manager

Voltage	13.2 V
Charging temperature range	5℃ to 45℃

Charger

Input	100-240 V, 50/60 Hz, 1.5A
Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage	13.2±0.1V
Rated power	66W

Storage

Internal storage	8GB
SD storage	Standard: 32 GB, max. support 256GB (UHS-3 rating required)

[video]

Introducing: Commercial Applications for EVO II

EVO II Dual 640T Thermal Imaging Demonstration

EVO II Dual 640T: Thermal Analysis Tool Overview

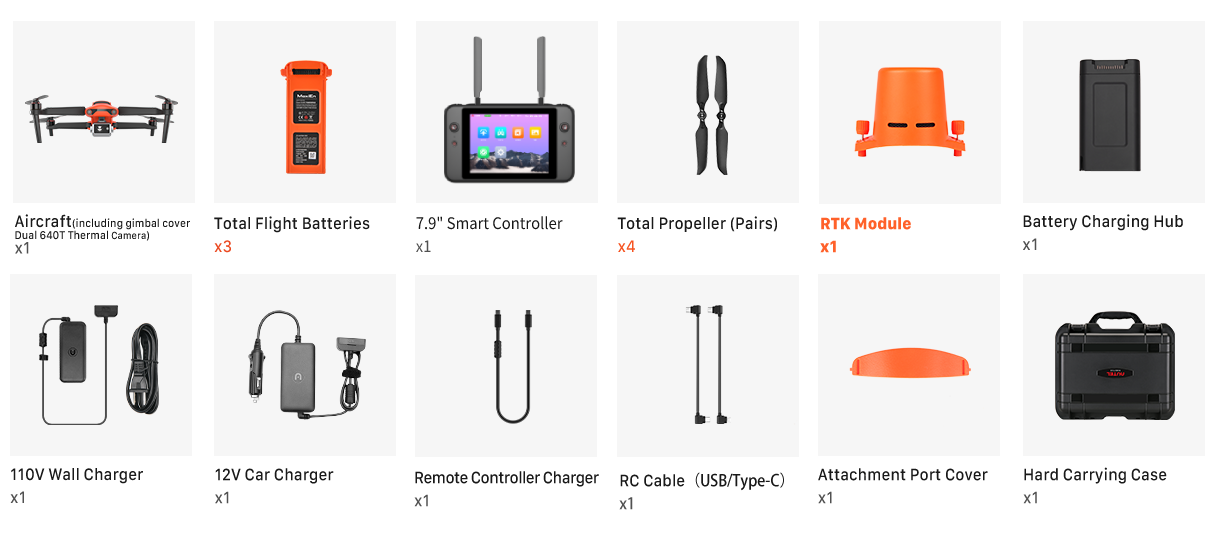

[accessories]

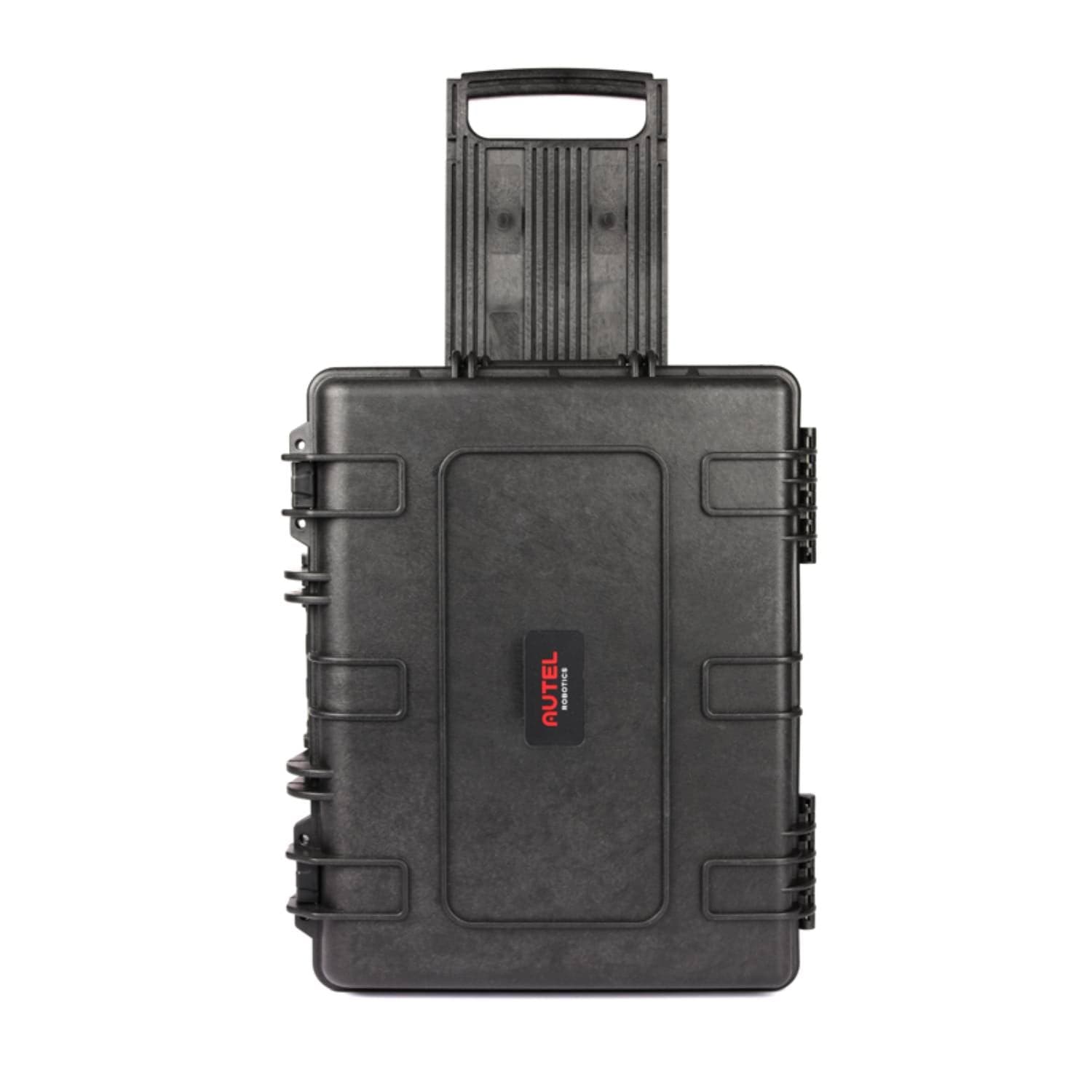

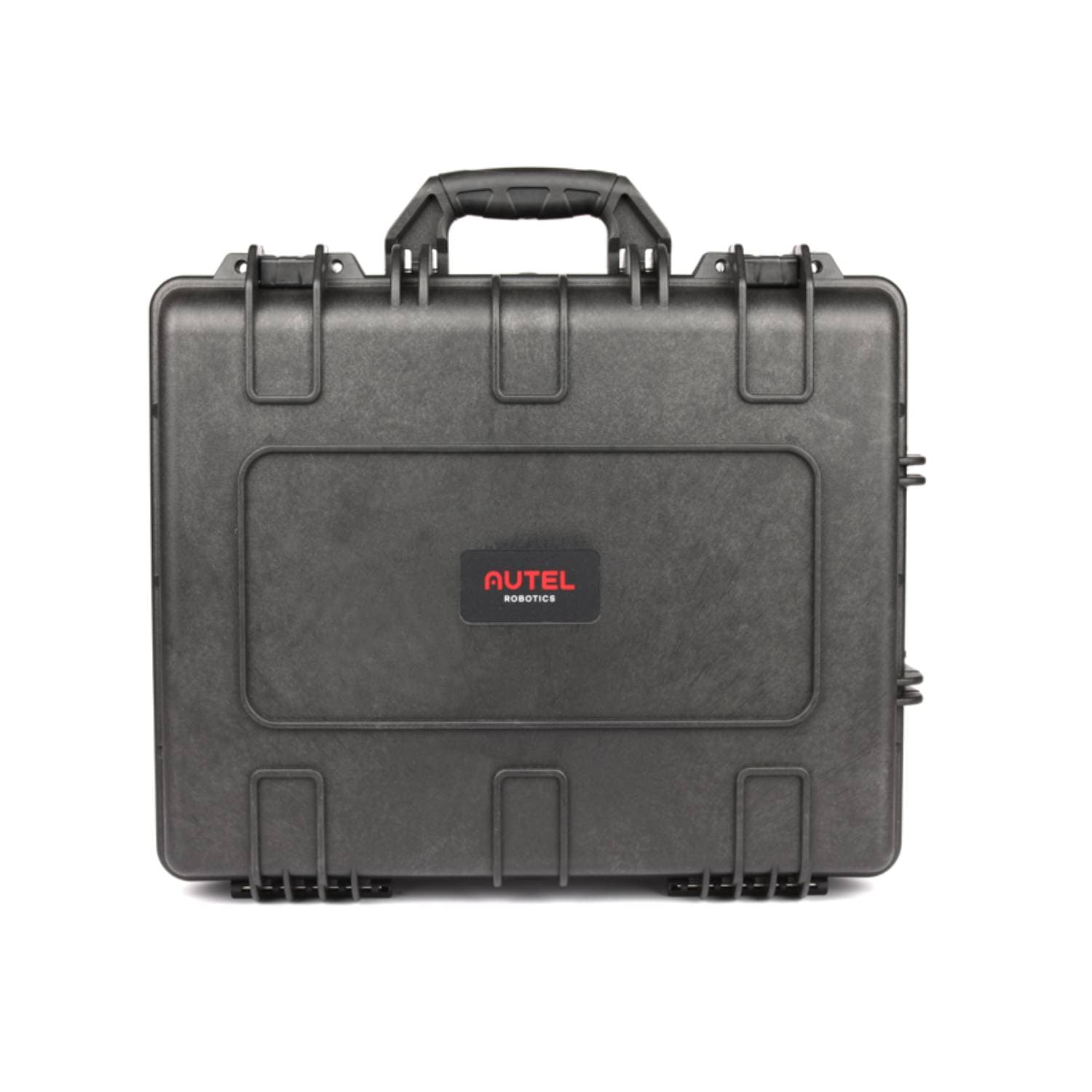

Autel EVO II Dual 640T Rugged Bundle With RTK Module
